Shear Resistance and Material Strength The CONNEX measurement tables in this website give minimum shear fracture values under static loading and temperatures up to 600 º F. The values apply to pins of the material AISI 6150. The engineer can choose the required safety factor based on his specific loading and environment conditions. The safety factor under dynamic loading is greater and can be 5 or higher under sudden or frequent pulsating stress. As well as an assessment based on calculations and previous experience of a particular pin connection, we recommend tests on a prototype, especially in large scale production. Shear Values of the Different Pin Materials
|
|
|
|||

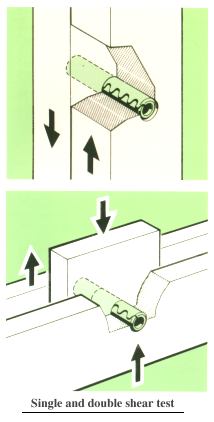

Establishing the Shear ValuesShear values given in the CONNEX measurement tables were established using single or double shear testing devices as indicated in the diagrams. They apply to the pins of material AISI 6150, DIN 1.8159. The parts of the shearing device were hardened. In comparison to the application of spring pins in practice, shear tests in the laboratory are carried out under ideal conditions. There is only minimum play between the shear block and side pieces so that the pin to be sheared does not undergo additional bending stress. |
|
|||||
|
|
|
|||||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
